Solid-Phase Peptide Synthesis Explained: Fmoc vs. Boc

Solid-phase peptide synthesis is the method behind almost every research-scale synthetic peptide. Understanding how it works makes analytical data easier to interpret, because the impurities seen in an HPLC chromatogram or mass spectrum are usually the fingerprints of specific synthesis steps. This article outlines the chemistry, compares the Fmoc and Boc strategies and connects each stage to the impurities it can generate.

The Merrifield principle

R. Bruce Merrifield described the approach in 1963, and it later earned him the 1984 Nobel Prize in Chemistry. The key idea is to attach the growing peptide to an insoluble polymer bead. Reagents are added in excess to drive each reaction toward completion, and everything that is not covalently bound to the bead is then washed away by filtration.

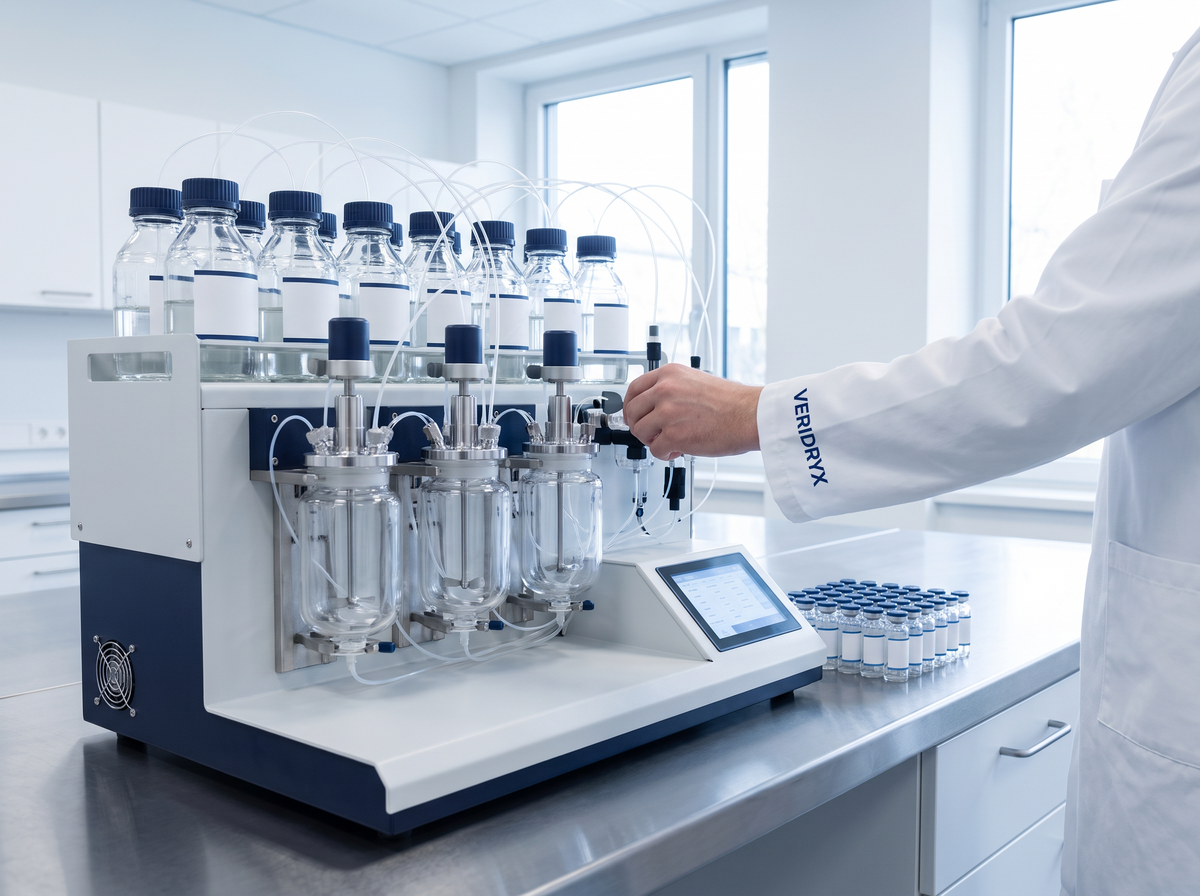

This replaces the purification of every intermediate, which is required in solution-phase synthesis, with a few solvent washes. It also lends itself to automation, which is why modern synthesizers can assemble long sequences with limited manual intervention.

Direction of synthesis

Chains are assembled from the C-terminus to the N-terminus, the reverse of how sequences are written. The first residue attached to the resin becomes the C-terminal residue of the final peptide. Our guide to peptide sequence notation explains the written N-to-C convention.

Fmoc vs. Boc solid-phase peptide synthesis

Two protecting-group strategies dominate. Both protect the α-amine of each incoming amino acid temporarily and protect reactive side chains semi-permanently until the end of the synthesis.

Feature	Fmoc/tBu strategy	Boc/Bzl strategy
Temporary Nα group	Fmoc (9-fluorenylmethyloxycarbonyl)	Boc (tert-butyloxycarbonyl)
Nα removal	Base, typically 20% piperidine in DMF	Acid, typically TFA in dichloromethane
Side-chain protection	Acid-labile: tBu, Trt, Boc, Pbf	Benzyl-based: Bzl, 2-Cl-Z, Tos, and related groups
Final cleavage	TFA with scavengers	Anhydrous HF or TFMSA
Orthogonality	Fully orthogonal (base vs. acid)	Graded acid lability (moderate vs. strong acid)
Extra step	None	Neutralization of the amine salt after each deprotection, or in situ neutralization
Typical use today	Most routine research synthesis	Specialized cases, such as some aggregation-prone sequences and thioester chemistry

Fmoc chemistry became the default mainly because it avoids hazardous HF and the specialized apparatus it requires. Boc chemistry remains useful where repeated acid exposure helps disrupt aggregation on the resin, or where acid-stable intermediates are needed.

Resins and linkers

The solid support is usually polystyrene cross-linked with about 1% divinylbenzene, or a more polar support such as a polyethylene glycol–grafted or PEG-based resin that swells well in a wider range of solvents. The linker between the bead and the peptide decides what C-terminal group is released at cleavage.

Linker / resin	Chemistry	C-terminus released
Wang	Fmoc	Carboxylic acid
2-Chlorotrityl chloride	Fmoc	Carboxylic acid; very mild acid can release side-chain-protected fragments
Rink amide	Fmoc	Primary amide
Merrifield (chloromethyl) or PAM	Boc	Carboxylic acid
MBHA	Boc	Primary amide

Resin loading, expressed in mmol of reactive sites per gram, is chosen with the sequence in mind. Lower loading spaces the chains further apart and can reduce aggregation in long or hydrophobic sequences.

Coupling steps and deprotection

Each residue is added through the same sequence of operations, repeated once per residue:

1. Nα deprotection. In Fmoc chemistry, piperidine removes the Fmoc group and forms a dibenzofulvene–piperidine adduct, whose UV absorbance near 301 nm can be used to monitor the reaction.
2. Washing. DMF or NMP washes remove the base and by-products.
3. Coupling. The next protected amino acid is activated, for example with a carbodiimide such as DIC plus an additive such as Oxyma Pure, or with a uronium or phosphonium reagent such as HBTU, HATU or PyBOP in the presence of a tertiary amine base. The activated ester acylates the free amine on the resin.
4. Washing. Excess activated amino acid and coupling by-products are washed away.
5. Optional capping. Acetic anhydride acetylates any amines that failed to couple, converting them into truncated, N-acetylated chains that are easier to separate later.

Completeness can be checked with a colorimetric test such as the Kaiser (ninhydrin) test, which detects free primary amines; it does not respond reliably to the secondary amine of proline.

Why step efficiency matters

Small inefficiencies compound. If every coupling step proceeded at 99% completion, a 20-residue peptide built on a preloaded resin (19 couplings) would contain at most 0.99¹⁹ ≈ 83% full-length chains before any side reactions. At 99.5% per step the figure rises to about 91%. This simple arithmetic explains why deletion sequences are the most common class of synthetic impurity.

Cleavage, isolation and purification

In Fmoc chemistry the completed peptide-resin is exposed to a cleavage cocktail, often TFA/triisopropylsilane/water in a 95:2.5:2.5 ratio, with additions such as 1,2-ethanedithiol for sequences containing cysteine or methionine. TFA releases the peptide from the linker and removes the side-chain groups, generating reactive carbocations from tBu, Trt and Pbf groups. Scavengers capture these cations before they alkylate nucleophilic residues such as tryptophan, tyrosine, methionine and cysteine.

The crude peptide is usually precipitated in cold diethyl ether, collected, dissolved and purified by reversed-phase HPLC, then lyophilized. Because both cleavage and purification use TFA, the product is normally a trifluoroacetate salt, as explained in our article on peptide counter-ions. An overview of how this fits into production is on the Veridryx manufacturing process page.

Where impurities come from

Each stage of SPPS has characteristic side products. The synthetic peptide impurities article covers how each appears in HPLC and MS data.

• Incomplete coupling: deletion sequences missing one or more residues.
• Capping or chain termination: truncated sequences, often N-acetylated.
• Incomplete side-chain deprotection: species carrying residual tBu (+56 Da), Trt (+242 Da) or Pbf (+252 Da) groups.
• Base-catalyzed side reactions: aspartimide formation, especially at Asp-Gly motifs (−18 Da, with possible piperidide adducts), and diketopiperazine formation at the dipeptide stage, particularly with C-terminal proline.
• Activation-related racemization: epimerization, most often at cysteine and histidine, giving diastereomers of identical mass.
• Cleavage-related modifications: tryptophan alkylation and methionine oxidation (+16 Da) when scavenging is insufficient.

Frequently asked questions

Why is Fmoc chemistry more common than Boc?

Fmoc chemistry uses milder final cleavage conditions and avoids anhydrous HF, which requires specialized equipment and handling. Its base/acid orthogonality also simplifies many syntheses.

Does the resin determine whether a peptide is an acid or an amide?

Yes. The linker chemistry sets the C-terminal group released at cleavage, so an amide requires an amide-generating linker such as Rink amide or MBHA.

What is capping, and is it always used?

Capping acetylates unreacted amines after a coupling step so that failed chains stop growing. It is optional and is used when it makes deletion products easier to separate.

Can very long peptides be made by SPPS?

Stepwise SPPS becomes harder as length increases because inefficiencies compound and aggregation becomes more likely. Longer targets are often assembled from purified fragments by ligation chemistry.

References

1. Merrifield, R. B. Solid Phase Peptide Synthesis. I. The Synthesis of a Tetrapeptide. Journal of the American Chemical Society, 1963.
2. Chan, W. C.; White, P. D. (eds.). Fmoc Solid Phase Peptide Synthesis: A Practical Approach. Oxford University Press.
3. Isidro-Llobet, A.; Álvarez, M.; Albericio, F. Amino Acid-Protecting Groups. Chemical Reviews, 2009.
