Manufacturing process

How a Veridryx research lot is made and released

Our peptides are produced by solid-phase synthesis at qualified manufacturing partners, purified by preparative HPLC, freeze-dried and tested before a lot is released.

SPPSSynthesis
Prep HPLCPurification
LyophilizedFormat
Per lotTesting

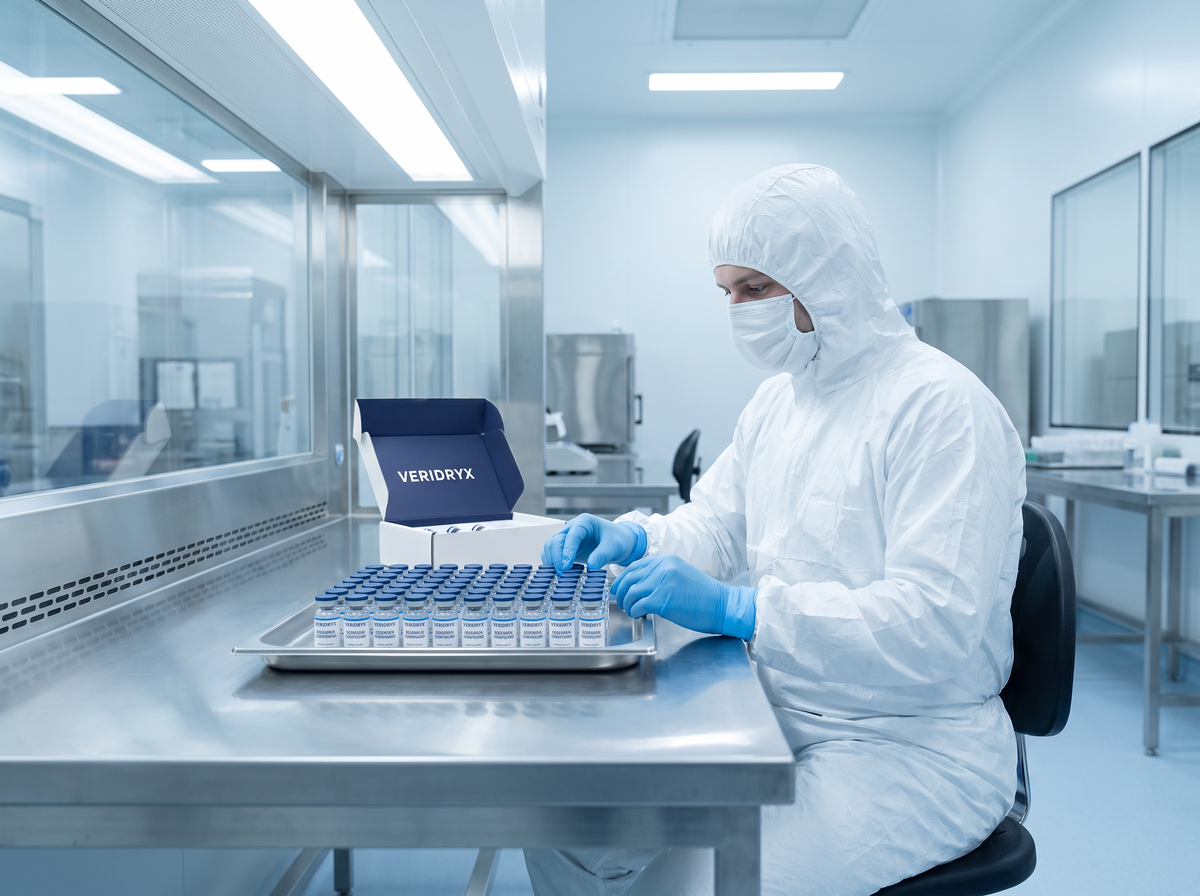

Technician in cleanroom gown handling a tray of Veridryx research vials
Lot releaseOnly with a complete COA
HPLC purityReported per lot
Mass spec identityObserved vs. expected mass
LAL endotoxinWhere tested
Residual solventsHeadspace GC, where tested
Lot-matched COAsLot number on every label
Quality analyst inspecting a Veridryx research vial against a light panel
Why it matters

Process control is what makes results comparable

Two lots of the same compound should behave the same in your assay. That depends on a consistent process and on testing that catches a lot that drifted.

Identity

Mass spectrometry confirms each lot is the intended molecule.

Contaminant screening

Endotoxin and residual solvents are tested where listed for the lot.

Independent records

Results are documented per lot and matched to the label.

Three phases

From amino acids to a sealed vial

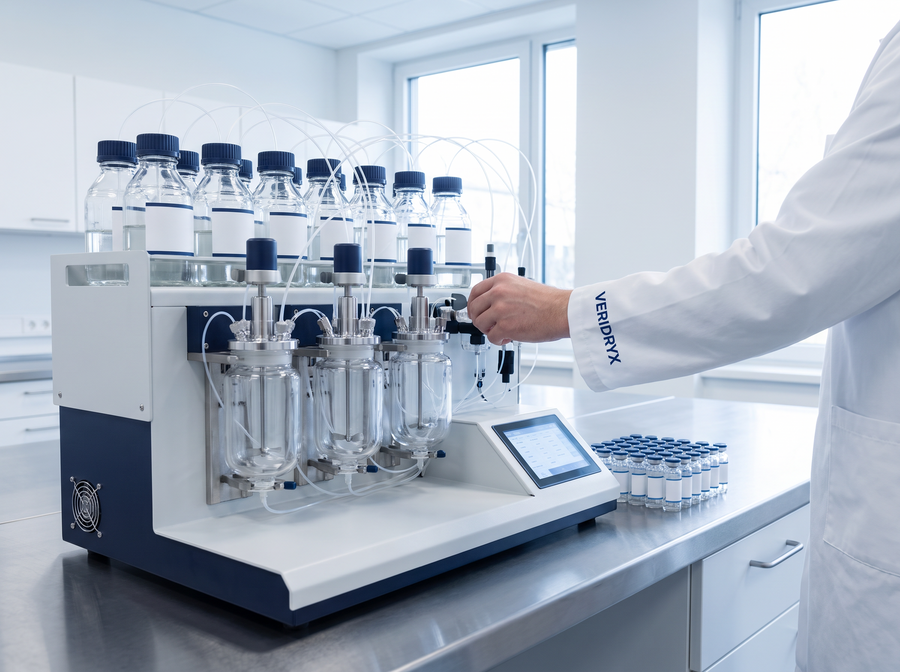

Automated peptide synthesizer in a lab with Veridryx research vials
PHASE 1

Synthesis

The peptide chain is built one amino acid at a time on a solid resin support (solid-phase peptide synthesis).

  • Protected amino acids coupled in sequence
  • Cleavage from the resin
  • Crude product characterized

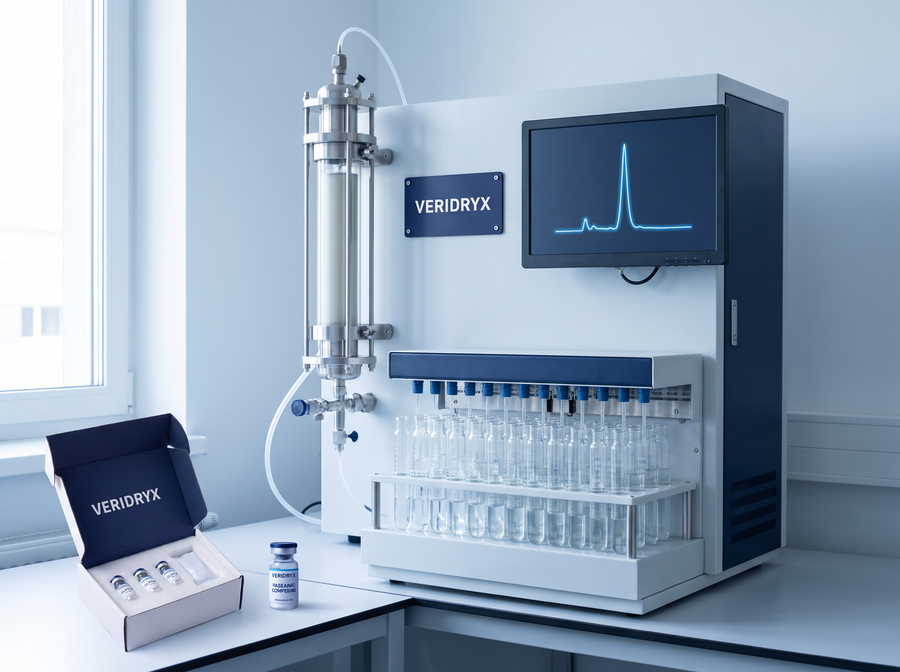

Preparative HPLC purification system with fraction collector and Veridryx box
PHASE 2

Purification

Preparative HPLC separates the target peptide from truncated and side-reaction products.

  • Fractions collected and analyzed
  • Only on-target fractions pooled
  • Salt form recorded

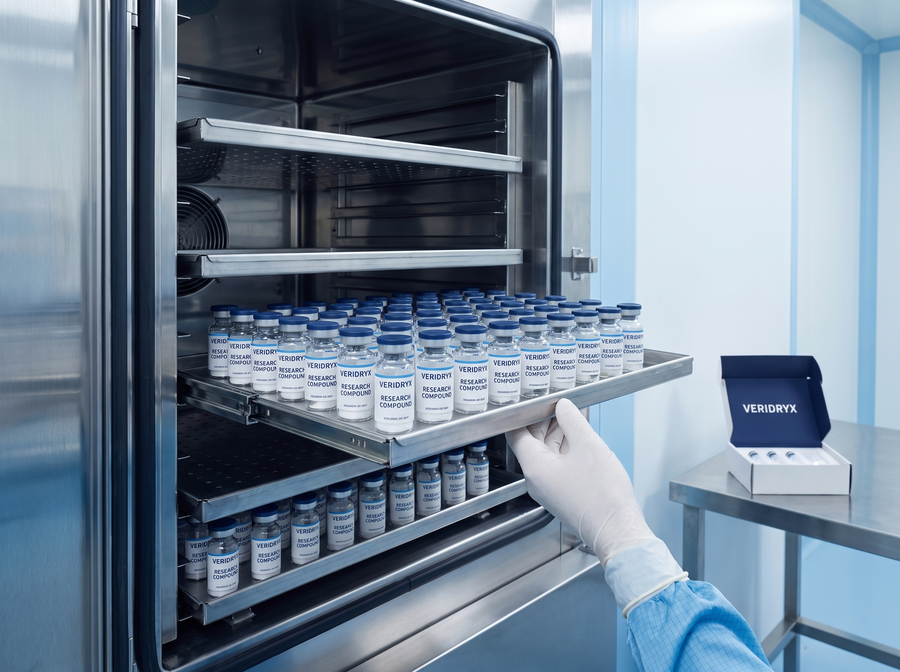

Freeze-dryer shelf loaded with Veridryx research vials after lyophilization
PHASE 3

Fill and release

The purified peptide is filled into vials and freeze-dried, then tested before release.

  • Lyophilization for stability
  • Lot number on every label
  • Released only with a complete COA
Step by step

The full process

  1. 1

    Sequence and specification

    The target sequence, salt form and acceptance criteria are set for the product.

  2. 2

    Solid-phase synthesis

    Amino acids are coupled in order on a resin support.

  3. 3

    Cleavage

    The finished chain is cleaved from the resin and protecting groups are removed.

  4. 4

    Crude analysis

    The crude peptide is checked by analytical HPLC and mass spectrometry.

  5. 5

    Preparative purification

    Preparative HPLC isolates the target peptide.

  6. 6

    Pooling

    Fractions that meet specification are combined into a single lot.

  7. 7

    Lyophilization

    The lot is filled into vials and freeze-dried into a stable powder.

  8. 8

    Lot testing

    Purity and identity are tested, with endotoxin and residual solvents where listed.

  9. 9

    Review and release

    Results are reviewed against the specification; only passing lots are released.

  10. 10

    Labeling and storage

    Vials are labeled with the lot number and stored cold until shipment.

Documentation

What is documented for each lot

01

HPLC purity

Main-peak area percentage with chromatogram and method conditions.

02

Mass spectrometry

Observed molecular mass compared with the expected mass.

03

Endotoxin

LAL result in EU/mg, where the lot has been tested.

04

Residual solvents

Headspace GC results, where the lot has been tested.

05

Appearance

Description of the lyophilized cake and vial condition.

06

Lot record

Lot number, test dates and the laboratory that ran each test.

Example

A certificate, line by line

This is the layout our certificates follow. Real results are on each lot's own certificate in the Testing Library.

Certificate of AnalysisProduct · Lot number · Test date · Laboratory
Example layout
TestMethodReported on the COA
PurityHPLC (UV)Area-% of the main peak
IdentityMass spectrometryObserved vs. expected mass
EndotoxinLAL assayEU per mg, where tested
Residual solventsHeadspace GCSolvents detected vs. limits, where tested
AppearanceVisualDescription of the lyophilized cake
Example layout only. Real results appear on each lot's own certificate.

Find the data for your lot

SYNTHESIS · PURIFICATION · LYOPHILIZATION · LOT TESTING

Search the Testing Library by lot number, or ask us for a report.
